3.5" Embedded Alder Lake SBC
3.5" Embedded Alder Lake SBC
3.5" Embedded Alder Lake SBC

3.5" Embedded Alder Lake SBC

  • Sale
  • $685.00

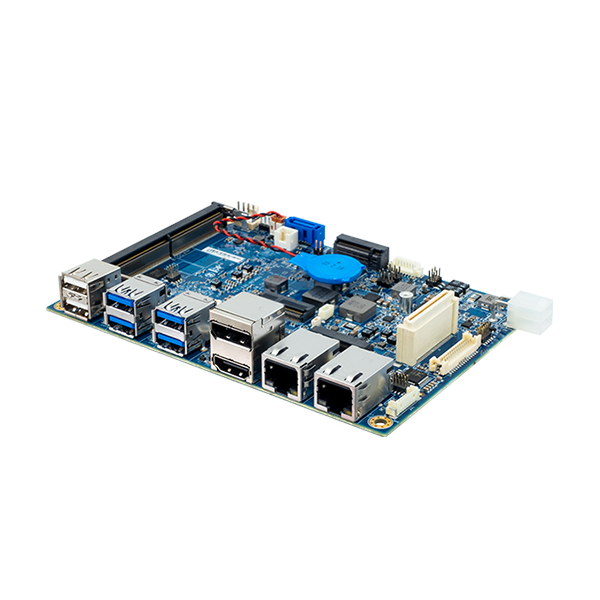

The IPC-B3P2U236 is a 3.5-inch embedded board that supports Intel® 12th gen. Core® i7/ i5/ i3 and Celeron processors.  Optimizing the latest technology including DDR5 memory and PCIe Gen4 NVMe, the IPC-B3P2U236 is a versatile board that provides powerful performance and can meet the needs of various applications in numerous industries.

 Applications using large displays, the IPC-B3P2U236 has it covered with its HDMI that supports resolution up to 4096 x 2160 at 60Hz and DisplayPort that supports resolution up to 4096 x 2304 at 60Hz.



Features:

•Intel® Core™ i7 / i5 / i3 / Celeron® series SoC

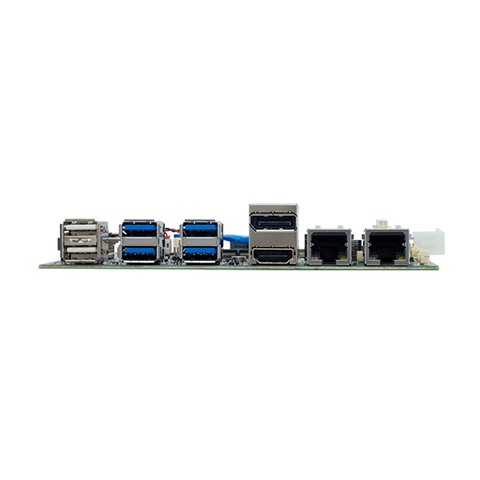

•2 x 2.5GbE LAN, 8 x USB, 2 x RS-232/422/485, 8bit DIO
•1 x DP, 1 x HDMI™, 1 x LVDS / eDP
•1 x M.2 M-Key 2280 (PCIe Gen4 x4)
•1 x M.2 B-Key 3042 (PCIe x1, USB2.0)
•1 x M.2 E-Key 2230 (PCIe x1, USB2.0)
•1 x Protech defined B2B Expansion I/O socket
•Wide Voltage DC Input 12V~24V
